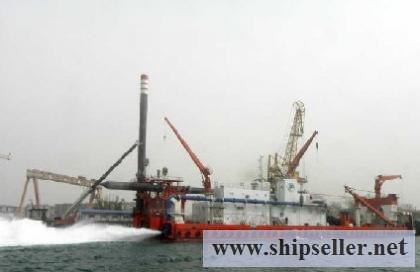

3500CBM CHINA BLT CCS CUTTER SUCTION DREDGER FOR SALE

Posted Oct 16, 2011 | Hits: 1524 | Stock No: #2019
Model:   CUTTER SUCTION DREDGER
Year:   2011
Length:   100 m
Flag:   CHINA


Sold


Gold


Particulars as below,
---------------------------------------------------
BUILT IN 2010, CHINA
FLAG: CHINA
CLASS: CCS
LOA/LBP/B/D: 100.0/79.8/18.6/5.2M
DRAFT: 3.7M
F.O.T: 750M3
F.O.T: 150M3
SPUD: 40M*1.6M*2
WORK ANCHOR: 7000KG*2
ACCO.(BED): 28
M/E FOR MAIN PUMP: NANCHE 16V280ZC/3650KW*2SETS
MAIN GENERATOR: NANCHE 12V280ZC-A/2400KW
AUX GENERATOR: KTA-19D(M)/350KW*3SETS
SWING WINCH: 600KN*2SETS
LADDER WINCH: 550KN*2SETS
DREDGING PUMP: JT14000-76
LIFT HEIGHT: 60M
DREDGING DEPTH: 27M
DISCHARGE DISTANCE: STANDARD 4500M, MAX 7500M
REFERENCE DREDGE CAPACITY: 3500M3/H
DISCHARGE CAPACITY(MAX): 12500M3/H
SUCTION DIA.: 900MM
DISCHARGE DIA.: 850MM
LADDER PUMP: SINGLE HULL JT14000-33*1SET
SUCTION DIA.: 900MM
DISCHARGE DIA.: 700MM
CUTTER HEAD SPECIFICATION: DIA 2760MM, 1400KW
MOTOR FOR CUTTER: KAWASAKI STAFFA
CUTTER RPM: 30RPM
TOTAL POWER: 12900KW
------------------------------------------------------

Inspectable and delivery in China port, as is where is basis.

Seller's price idea can be provided against buyer's background info.
