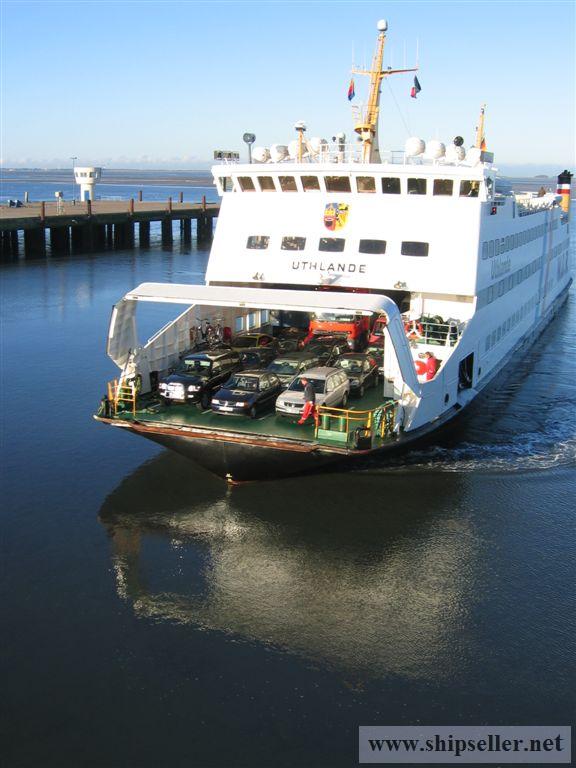

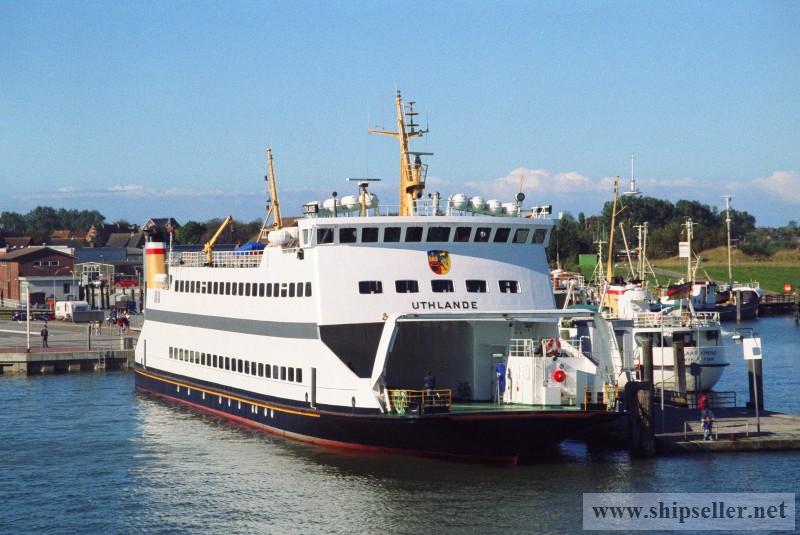

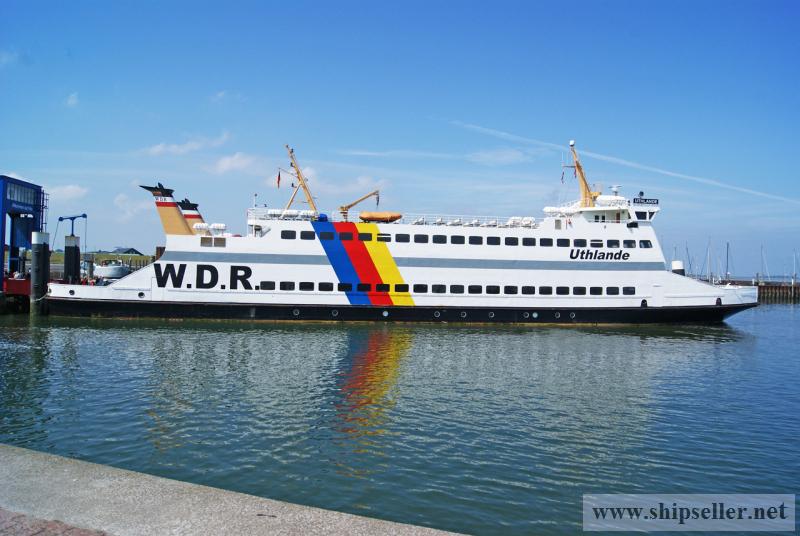

Car pax Ferry/ 975pax/ 55 car for sale blt 1980

Car pax Ferry/ 975pax/ 55 car German managent vessel trade in
Germany.
The vessel is ready for
inspection in Germany near Hamburg .
Made in Germany
Hull Number 1460
Build 15.04.1980
Lengthening 25.03.1986
Classification society:
Germanischer Lloyd (GL)
Hull GL + 100 A5 W Shallow Water Service E
With freeboard 1,31 m GL Reg. Nr. 016338-3
Machinery MC Aut 3/24
Divisions 1 Compartment status
Regulations: SOLAS amendments 88,
Chap. II-1, Reg. 8, 1-compartment-status,
throughout entire ships length
MARPOL 73/78, (Annex I) - and others-
Main details:
Length over all 67,87 m
Length LPP(CWL) 65,33 m
Breadth of frames 12,80 m
Breadth over all 13,20 m
Draft max (summer freeb.) 1,90 m
High bottom-main deck 3,20 m
Freehight Garage on car deck 4,15 m
Freehight bow board 4,50 m
Freehight luggage corridor 2,00 m
Freehight tween deck 2,05 m
Freehight salon deck 2,10 m
Air draft 20,20 m
Deadweight (Draft=1,90 m) 305,00 t
Displacement (Draft=1,90 m) 1077,239 t
Speed max 11,0 Kn
Tonnage : Gross tonnage 1743,0 BRZ Net tonnage 576,0 NRZ Register
tonnage 998,75 BRT
Passengers total summer 990 pers.
Passengers total winter 508 pers.
Spaces:
Tank deck: Double bottom from frame 21 until 53 and a until s and 53 until 85
Water ballast-, freshwater-, fuel-, sewage-, and other small tanks
Frame 100 – 85 Room for bowthruster + trim tank
Frame 85 – 72 4 single cabins for crew, crews mess bath room, galley and store
Frame 72 – 53 no smoking salon, 2 single cabins
Frame s – 53 television room, 2 single cabin for catering crew
Frame 53 - 33 3 single cabins for Chief Mate, 1. Eng, 2.Eng, 2 washrooms, 4 single
cabins for crew, catering store, chill room and deep freezing room
Frame 33 - 21 main engine room
Frame 21 . 07 MCR, auxiliary engine room
Frame 07 - 00 rudder engine room
Main deck:, Car deck, post locker, engine room-entrance, electr. Switchboard room,
emergency-battery-room, CO2 room, paint store, luggage-corridor,
Toilet for handicapped persons
Tween deck:Anchor windlass, corridor, toilets for passengers, stowage and baby-service room
Salon deck:Salon, double entrance with a windbreak, pantry, stowage

Sundeck:Wheelhouse, captain's accommodation, inflatable rescue boat with outboard-motor,safety-store

Observation deck:Antenna-equipment Seite 3 von 6 29.09.08

Seats for Passengers: Sundeck: 412 seats on benches with plastic surface
Salon deck, inside, no smoking: 15 seat groups with a table between benches with 6 seats each along the window front
2 seat groups with a table between benches with 4 seats each along the window front
15 seat groups with a table and chairs with 4 seats each in the middle
2 seats without table
total 174 seats
Salon deck, inside, smoker
12 seat groups with a table between benches with 6 seats each along the window front
12 seat groups with a table between benches with 4 seats each along the window front
3 seat groups with a table and chairs with 6 seats each in the middle
11 seat groups with a table and chairs with 4 seats each in the middle
Total 182 seats
Salon deck, outside: 84 seats on benchesTank deck, television
room: 86 seats on fixed benches
Tank deck, no smoker: 10 seat groups with a table between benches with 6 seats each
7 seat groups with a table and chairs with 4 seats total 88 seats
Loading capacity:
Measurement of car-deck, length 66,00 m broad 9,00 m
4 lanes marked with white paint. Standard-car capacity 52 cars
Decks strength:Car-deck 13,00 t axle load (pneumatic tyre
vehicles)3,25 t wheel pressure (twin tyre)
Tank capacities: Cargo oil tank Tank No. 1 double bottom tank port
28,59 m3 20,09 t
Freshwater Tank No. 1 double bottom tank stb 9,96 m3 9,96 t Tank
No. 2 double bottom tank port 9,96 m3 9,96 t
Fuel (gas oil) g ~ 0,830
Gas oil:
Tank No. 1 double bottom tank stb 28,59 m3 20,09 t
Tank No. 2 double bottom tank stb midsh. 13,16 m3 10,92 t
Tank No. 3 double bottom tank stb 11,77 m3 09,77 t
Tank No. 4 double bottom tank port midsh 15,05 m3 12,50 t
Tank No. 5 run over tank stb 0,2 m3 0,18 t
Tank No. 6 day tank main engines 1,6m3 1,38 t
Total 70,47m3 54,84 t
Seite 4 von 6 29.09.08
Lubrication oil
Tank No. 701 lubr. oil tank main engine stb 0,600 m3 0,552 t
Total 0,600 m3 0,552 t
Other small tanks
Tank sewage double bottom tank 28,69 m3 27,25 t
Tank separator slop oil tank 0,4 m3 0,38 t
Tank cooling water draining tank 0,4 m3 0,40 t
Total 29,49 m3 28,00 t
Ballast water
Tank forepeak port 21,46 m3 21,99 t
Tank forepeak starboard 23,99 m3 24,59 t
Tank ballast starboard 10,50 m3 10,76 t
Tank trim tank ahead 32,30 m3 33,10 t
Tank trim tank a stern 35,50 m3 36,39 t
Total 123,75 m3 126,74 t
Safety equipment Equipment for 1180 persons 1 inflatable rescueboat
DSB 380 with outboard motor
Launching device: 1 crane with manual operating (400Kg lift) Life rafts
Number of closed rafts 20 capacity 25 persons each total 500 persons
Number of open rafts 8 capacity 65 persons each total 520 persons
Equipment according SOLAS “B” Number of lifejackets for adults 1090, for children 98
Number or lifebuoys 6Rudder 2 Hinze flap-rudder Propulsion
Main engines: – four-stroke-cycle engine Maker Deutz MWM Type TBD
440-6 Number 2 Output 596 KW each Revolution 900 Fuel gas oil 7 cST/40°
Auxiliary engines: four stroke cycle engine electric starter
Maker MAN Type D 2566 ME Number 2 Output 105 KW
Revolution 1500 Fuel gas oil Seite 5 von 6
29.09.08 Bowthruster engine: four stroke cycle engine with electric starter
Maker MAN Type D 2846 LE Number 1 Output 415 KW Revolution 1800 Fuel
gas oil Generators-electric supply
Maker A v K Type DIDB 49-150 Number 2 Output 230 KVA (334 A) Voltage
400 V / 50 Hz Bowthruster drive unit Maker Schottel Type SBJ 142 Number 1Output
415 kW Propeller and drive shaft
