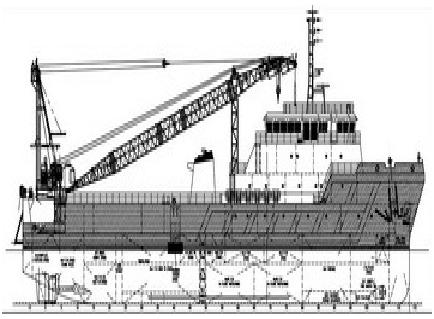

75 m 3600HP Maintenance Work Boat (Work-In-Progress)

Posted Aug 16, 2010 | Hits: 1714 | Stock No: #0519
City:   Sibu, Sarawak
Model:   MB7501
Condition:   New




Classification Society / Class:
 American Bureau of Shipping

 Class Notation:
 Hull & Machinery for Class ABS Maltese Cross + A1 + AMS Circle E for unrestricted service

 Condition:
 Work-In-Progress (17 months to completion)



Port of Registry:
 Malaysia



Location:
 Malaysia

 Length Over All:
 75.00 m



Length Between Perpendiculars:
 72.20 m

 Molded Beam:
 20.00 m

 Molded Depth:
 6.50 m

 Designed Draft:
 5.00 m

 Designed Speed:
 11 knots @ 100% MCR

 Fuel Oil Tank Capacity:
 Approx. 650 m3

 Fresh Water Tank Capacity:
 Approx. 1200 m3

 Crew Accommodation:
 196 Men

 Main Deck Strength
 10 tonnes/m2

Main Engines

 Make/Model: (2 units)
 Cummins / KTA50-M2

 Power @ 1900 RPM
 1800 BHP x 2




Gear Box

 Make/Model: (2 units)
 Reinjtes / WAF664

 Ratio:                                             5.04:1

Generator Sets

 Make/Model: (3 units)
 Cummins / KTA19-D(M)1

 Power Rating:
 360 kW

Emergency Generator Set


 Make/Model: (1 unit)
 Cummins / 6CTA8.3-D(M)

 Power Rating:
 150 kW


Bow Thruster

 One (1) 8t transverse FPP thruster.  The unit shall be driven by a diesel engine mounted in the fore part of the bow thruster compartment. One (1) remote stations c/w instrument panel and the rpm of the engine will be controlled from both the forward and aft controls in the wheelhouse.


 Anchor Windlass/Ramp Door Winches

 One (1) unit electro hydraulic anchor windlass suitable for 46mm dia. Stud link Grade 2 chain c/w two warping drums is to be provided.  The cable lifters and warping drums are to be independently clutched and variable speed local hydraulic control on forward of forecastle deck, chain pipes, cable stoppers and hawse pipes are to be arranged at site.  Windlass is to be provided with manual brake and clutch with local control.




Anchors, Chain Cables & Mooring Lines


       Anchors              :           Four (4) Delta flipper anchors, each 5000 kg for mooring &


                                               one (1) spare anchor


        Anchor wire         :           Each anchor to be fitted with 3m pig tail chain. Anchor wires of


                                               1500 m length and 38 mm diameter shall be supplied five (5) in


                                               total, one being spare. Construction to be 6 x 19 RHRL,EIPS,


                                               IWRC GALV


        Mooring Lines      :           1 x 96 m dia. X 200 m polypropene rope

Single Drum Mooring Winch

            Maker (4 units)             :          Plimsoll


            Type                            :          Single drum c/w auto-spooling


            Drum Pull (1st Layer)   :           40T x 0-10m/min (low speed)


                                                            10T x 0-30m/min (high speed)


            Drum Capacity            :           1500m x 38mm dia. wire rope



Hydraulic Vertical Capstan

                    Quantity                           :      2 units


                    Type                                :      Vertically Mounted


                    Rated Pull                        :      5T x 0-15 m/min


                    Horsepower Required     :     22 kw (approx.)


                    Control                            :     Local Control

Lattice Boom Type Offshore Pedestal Crane

                    Make/Model                   :     Favelle Favco / 6/10K (Full compliance with API


                                                                 Specification 2C & ABS classification)


                    Rotating System             :     “King Post” type (consists of a vertical tubular


                                                                member,  mounting platform & tubular thrust


                                                                 type gantry)


                    Boom Length                 :     Approx. 135 ft




External Fire Fighting System

a)         Fire Fighting Pumps


            One (1) unit seawater pump of capacity 300 m3/hr at 120 m head.


            The Ni-A1-Bronze casing and impeller pump is to be direct-coupled to the diesel


               engines and remote control c/w engine indicator panel in wheelhouse.





b)         Fire Monitors


            Two (2) units Water Monitors – stainless/bronze housing Jet/Fog type.


                                    Monitor                                               Water


                                    Capacity                                              150 m3/hr


                                    Inlet pressure                                       12 bars


                                    The water monitors to be manually controlled and capable to turn


                                    through 360 degrees positioned towards the stern of the vessel.


                                    Make:  Hamworthy

Steering Gear


 Electro-hydraulic steering gear of about 10 t-m. 2 x 35 degree rudder angle c/w emergency hand hydraulic steering.





Wheelhouse            :    Steering lever joystick type electric-hydraulic


Steering gear room :   Hand hydraulic for emergency


Make                       :   Wagner


Bilge/Ballast Pump & GS/Fire Pump


 Make/Model: (2 units)
 Hamworthy / C2G-100HR-AAN-B06A4-CNB


Vertical self‑priming centrifugal SW pump


 Capacity:
 75 m3/ hr at 45.0 m total head


 General Service/Fire Pump & Fire Service Pump

 Make/Model: (2 units)
 Hamworthy / C2G-125HR-AAN-B14G3-CNB


Vertical self‑priming centrifugal SW pump

 Capacity:
 170 m3/ hr at 105 m total head

Fuel Transfer Pump

                   Make/Model: (1 unit)
 ITUR Model RC-2RD


Horizontal gear pump

                   Capacity:
 15 m3/ hr at 18.0 m total head

                   Make/Model: (1 unit)
 ITUR Model RC-3R


Horizontal gear pump

                   Capacity:
 30 m3/ hr at 57.0 m total head


Oily/Bilge Water Separator


 One (1) unit oily bilge water separator, capacity 1.0 m3/hr @ 2 kg/cm2 and single 15 ppm c/w bilge pump as per IMO-Resolution MEPC 107 (49) requirement





Maker/Model :          Taiko Kikai / USC-10XLD-1NSA

Navigation Equipment


 Primary X-Band Radar:
 GEM LD-1810/6/AC

Secondary Radar:
 GEM LD-1810/6/AC

Speed Log:
 LILLEY & GILLIE

GPS:
 FURUNO GP-150

Echo Sounder:
 SKIPPER ED-165

Autopilot System
 ANSCHUTZ PILOTSTAR D

Magnetic Reflector Compass:
 LILLEY & GILLIE

Gyro-compass (GMDSS):
 ANSCHUTZ STD 22 G/GM

AIS
 MCMURDO M-2

Anemometer & Anemoscope
 Walker
