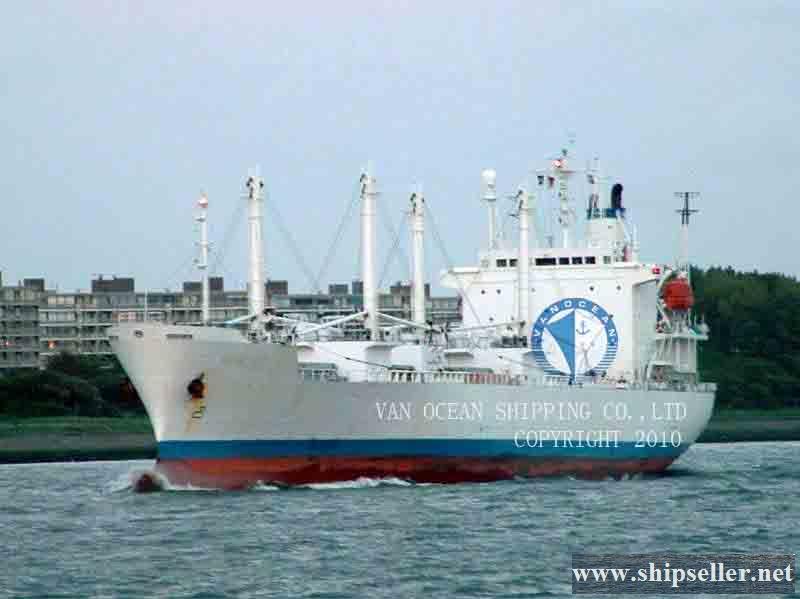

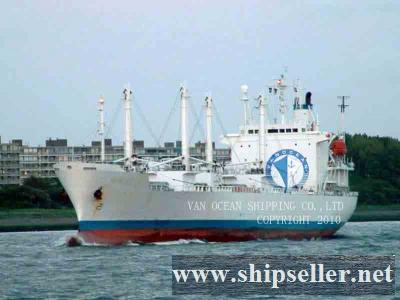

REF428

Posted Mar 24, 2014 | Hits: 443 | Stock No: #5383

$5800000

City:   EUROPE
Model:   REEFER
Year:   1988
Length:   141 m
Condition:   Good
DWT:   9727
Flag:   BAHAMAS


Free


NAME REF428
TYPE REEFER
FLAG BAHAMAS
PORT OF REGISTRY NASSAU
BUILT YEAR 1988-12
BUILT PLACE KURUSHIMA SHIN ONISHI
CLASS LR  100A1 LMC, Lloyds RMC
SS
DD
LOA 141.00M
LBP
BEAM 20.60M
DEPTH 13M
DRAFT 8.69M (TROPICAL);
8.51M (SUMMER)
8.33M (WINTER)
GT 8487MT (INTERNATIONAL)
NT 3897MT (INTERNATIONAL)
7355MT (PANAMA)
7413.08MT(SUEZ)
DWT 9727MT (SUMMER)
FLOOR SPACE CAPACITY
GEAR DRKS 8×5MT OR 4×3.5MT UP
ME MITSUBISHI 6UEC52LS 10801 BHP 120 RPM
AE/GENERATOR
SPEED/CONSUMPTION Ballast Full CSS 19.50 KTS ON 23.50 MT (380)+1.50 MT(380) +0.5MT MDO
Ballast MIN CSS 16.50 KTS ON 18.0 MT (380)+1.50 MT(380) +0.5MT MDO
Banana laden Full CSS 18.50 KTS ON 24.50 MT (380)+4.0 MT(380) +0.5MT MDO
Banana laden MIN CSS 16.0 KTS ON 18.50 MT (380)+4.0 MT(380) +0.5MT MDO
Summer draft laden (Frozen commodities) Full CSS 17.50 KTS ON 24.50 MT (380)+3.5 MT(380) +0.5MT MDO
Summer draft laden (Frozen commodities) MIN CSS 15.50 KTS ON 17.0 MT (380)+3.5 MT(380) +0.5MT MDO
FUEL TYPE
HOLD NUMBER 4
HATCH NUMBER 4
HATCH SIZE HOLD 1:7.35x6.00;
HOLD 2,3,4:8.10x6.00
SIDE DOORS 4
COMPARTMENT 15
DECKS 4
DECK AREA 4862.26SQM
DECK HEIGHT MIN 2.20M
ALLOWABLE WEIGHT OF FORKLIFT INCLUDING CARGO MAX 5MT (FORKLIFT TO BE EQUIPPED WITH MINIMUM 4 AIRTYRES)
CAPACITY (CBFT) 440365
CAPACITY (CBM) 12471.4
TYPE OF THE VENT SYSTEM
VENT VERT
TEMPERATURE -25+15DC
AIR CIRCULATION 90/HR
AIR RENEWAL 4/HR
TEMPERATURE ZONES 8
INDEPENDENT COOLING SECTION 1A/BC, 2AB/CD, 4AB/CD
REEFER PLUGS 12
PALLET 3800
CONTAINER 36TEU
DELIVERY PLACE EUROPE
PRICE USD 5.8 MILLION
REMARKS USDA equipped, valid until 01-February-2016
360 quality certificates valid until 26-February-2011
