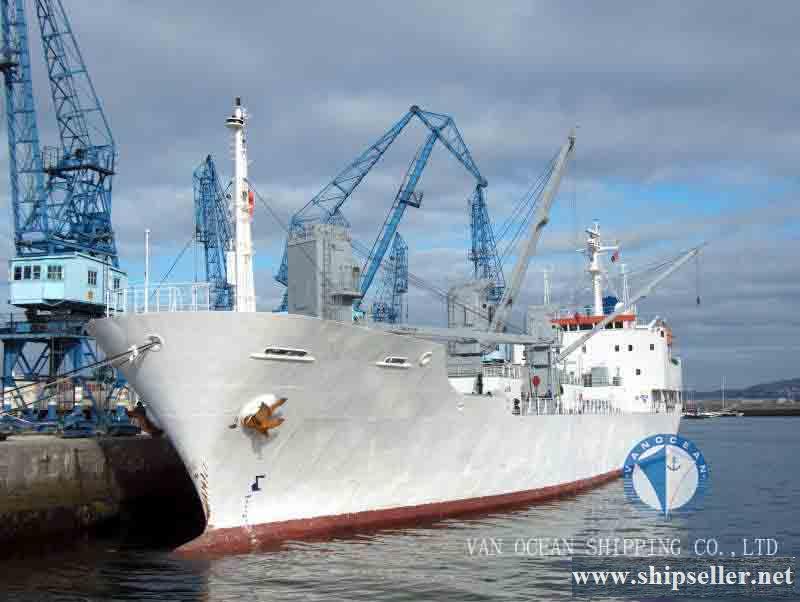

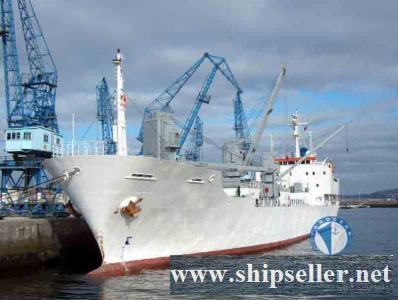

REF102 REEFER CARRIER/OCEAN GOING AREA 1985-03

NO. REF102
PORT OF REGISTRY WILLEMSTAD
TYPE REEFER CARRIER/OCEAN GOING AREA
FLAG PANAMA
BUILT YEAR 1985-03
BUILT PLACE HAYASHIKANE, NAGASAK, JAPAN
CLASS BV
SS
DD
LOA 107.96 M
LBP
BEAM 16.00 M
DEPTH 9.80 M
DRAFT 6.214 M
GT 4202 MT ((INTERNATIONAL)
NT 1261 MT (INTERNATIONAL)
3608 MT (PANAMA)
3504 MT (SUEZ)
DWT 4278 MT
FLOOR SPACE CAPACITY
GEAR CRANE, 3×5.0MT
ALLOWABLE WEIGHT OF FORKLIFT  MAXIMUM 5 MT (FORLIFT TO BE EQUIPED WITH MINIMUM 4 AIRTYRES)
ME MAKITA-MITSUI B&W DE7L35MC 3500 KW-200 RPM
AE/GENERATOR
SPEED/CONSUMPTION 13 KNOTS AT ABT. 8.0 MT (180) FOR ME+ABT. 1.2 MT/ 1 SET; 2.5 MT/ 2 SETS; 3.5 MT/ 3 SETS (MGO) FOR AE
FUEL TYPE
HOLD NUMBER 3
HATCH NUMBER 3
HATCH SIZE
COMPARTMENT 9
SIDE DOORS  6
DECKS 3
DECK AREA 2213.00SQM
DECK HEIGHT MIN 2.2 M
CAPACITY (CBFT) 190525
CAPACITY (CBM) 5395
BUNKER TANK CAPACITY  IFO 575 MT MGO 137 MT
TYPE OF THE VENT SYSTEM
VENT VERT
TEMPERATURE -25/+12 DC
TEMPERATURE ZONES 6
INDEPENDENT COOLING SECTIONS 1A/BC, 2A/BC, 3A/BC
AIR CHANGE 90/HR
AIR RENEWAL 2/HR
CONTAINER
ELECTRONICS FULLY EQUIPPED WITH MODERN ELECTRONICS ON THE BRIDGE
PALLET 1650
REEFER PLUG 20
DELIVERY PLACE
DELIVERY TIME
PRICE USD 2.8 MILLION
REMARK VESSEL RIGHT NOW TRADING IN THAILAND;
USDA EQUIPPED
