2 units of 32 m 3200HP Tug Boat

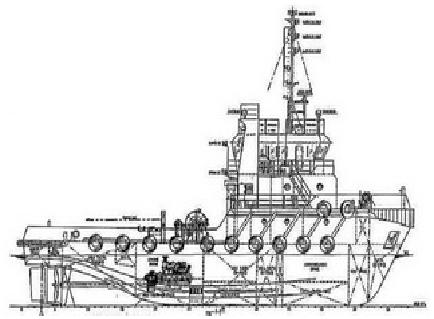

32.00 M TUG BOAT

SHIP PARTICULARS

Length Overall
 32.00m

Length B.P
 TBA

Beam Moulded
 9.14m

Depth Moulded
 4.20m

Draft Designed
 3.50m

Class Notation:
 GL + Unrestricted services

Condition:
 Complete on Jun’2010

 Complete on Jul’2010

Gross Tonnage:
 TBA

Speed:
 11.0 knots (approx)

Accommodation

2 cabins for Captain and Chief Engineer:
 2 men

6 x two-men cabin:
 12 men

Tankage (approx)

Fresh Water:
 32 tons (approx)

Fuel Oil:
 220 tons (approx)

Ballast Water:
 24 tons (approx)

Engines

Main Engine:
 2 x 1600BHP/1800RPM, Cummins KTA 50M2

Reduction Gear:
 Reintjes WAF665, 5.950:1

Propeller:
 2 x 4 bladed manganese bronze.

Main  Generator:
 2 x 80KW Cummins

Deck Machinery

Anchor Windlass:
 1 x Hydraulic Anchor Winch 22mm.

Anchor:
 2 x stockless bower anchors each of 570kg.

Towing Winch:
 1 x 40 tons single drum. Drum capacity 800m x 42mm wire ( wire rope to be supplied by buyer)

Towing Hook:
 1 x 40 tons

Fire Fighting Equipment

Fire Extinguisher is provided.

A complete fireman’s outfit is to be provided.

Pumps

Bilge pump: 1.
F.O. pump: 1 x 9.8M³/hr @ 25m head.
F.W. pump: 2.
Fire pump: 1.
Sewage treatment system: for 15 persons.
Oily bilge water separator: 1 x 0.5M³/hr.

Life Saving Equipment

2 x 15 men life rafts.
8 sets Life buoy.
18 sets lifejackets.
1 set first aid kit.

Navigation Equipment

For A2.
1 set SSB radiotelephone.
1 set Radar range 24NM.
1 set GPS navigator.
1 set Echo sounder.
1 set EPIRB.
1 set Navtex receiver.
1 set SART.
1 set VHF/FM radio.
