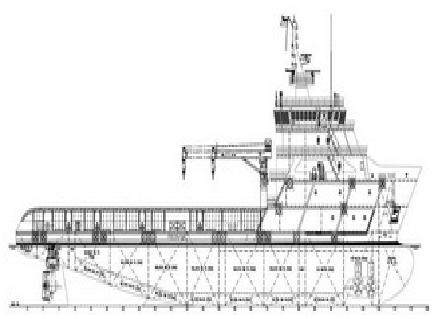

2 units of 75 m 6000HP FiFi 1 DP2 Platform Supply Vessels

SHIP PARTICULARS

Length Overall
 75.00m

Length B.P
 66.98m

Beam moulded
 17.25m

Depth moulded
 8.00m

Draft designed
 6.50m

Deadweight:
 3000 t (approx)

Class Notation:
 ABS + A1 (E) Offshore Support, Fire Fighting Vessel Class-1 + AMS, ACCU + DPS-2, Unrestricted Services.

Condition:
 Complete on Oct’2011

 Complete on Feb’2012

GRT/NRT:
 2950 t / 885 t (approx)

Speed:
 13.0 knots (ballast condition)

Endurance:
 28 days (approx)

Accommodation

14 x 1-man cabin:
 14 men

18 x 2-men cabin:
 36 men

Total:
 50 men

1 x hospital
 1 man

Chiller:
 28 days

Freezer:
 28 days

Provision Store:
 28 days

Dynamic Position System

Kongsberg dynamic position system per ABS DPS-2 requirement for safe and efficient vessel/offshore operation.

Discharge Rates

Fresh Water Cargo:
 1 x 100m³/hr @ 80M head.

Fuel Oil Cargo:
 2 x 150m³/hr @ 80M head.

Drill Water:
 1 x 100m³/hr @ 80M head.

Ballast:
 80m³/hr @ 70M head.

Bilge:
 60m³/hr @ 50M head.

Liquid Mud:
 2 x 75m³/hr @ 90M head.

GS / Fi-Fi:
 1 x 80m³/hr @ 70M head.

Fuel Oil:
 2 x 20m³/hr @ 20M head.

Cement Compressor:
 2 x 20M³/min @ 80psi, air compressor.

Cargo Capacity

Clear Deck Area
 700M²

Fuel Oil:
 1000M³

Fresh Water:
 500M³

Deck Cargo:
 1200 t

Deck Loading:
 5.5 t/M²

Drill Water:
 1500M³

Bulk Cement:
 226M³ (4 x 2000ft³)

Mud:
 600M³

Bilge holding:
 10M³

Dirty Oil:
 10M³

Lub Oil:
 10M³

Detergent:
 14M³

Supply & Drainage Plant

Sewage Holding & Treatment System:
 For 50 men

Oily Bilge Water Separator:
 1 x 1.0M³/hr with oil content less than 15 ppm.

Freshwater Hydrophore Plant::
 1 x 5M³/hr @ 35M head.

Seawater Hydrophore plant:
 1 x 5M³/hr @ 35M head.

Freshwater Maker:
 2 x reverse osmosis type of 10 t/day.

Hot Water Circulation Pump:
 1 for 50 men

Engines

Main Engine:
 2 x 3000BHP/750RPM, Niigata 8L28HX

Shaft Alternator:
 2 x 1000kW.

Propeller:
 Twin fixed pitch rudder propellers.

Bow Thruster:
 2 x CPP type of 10 t thrust.

Main  Generator:
 3 x 450kW @ 1500rpm diesel driven, Caterpillar 415V/50Hz/3ph.

Emergency Generator:
 1 x 80kW, diesel driven, Caterpillar.

Deck Equipment

Windlass:
 1 x electro hydraulic type of 13 t @ 18M/min for 46mm dia. Chain with 2 warping heads.

Capstan:
 2 x electro hydraulic type of 10 t.@ 25M/min.

Tugger winch:
 2 x electro hydraulic type of 10 t.@ 24M/min.

Anchor:
 2 x 1980kgs high holding anchors.

Lashing Lug:
 20 x 10 t SWL.

Deck Crane:
 1 x 3 t 10M max. outreach.

External Fire Fighting System

External FI-FI:
 Class 1 c/w fixed water spray system.

Fire Monitor:
 (Water/foam) 2 x 1200M³/hr @ 12 bar @ 120M throw length.

Fire Pimp:
 2 x 1500M³/hr @ 14 bar @ 1800rpm.

Foam System:
 20M³ c/w foam monitor.

Dispersant:
 20M³ with 6M spray boom on each P&S side

Sea Chest:
 2 x independent type.

Internal Fire Fighting System

Emergency Fire Pump:
 1 x 35M³/hr @50M head (head (7 bar).

Full Flooding CO² System:
 Provided in engine room with auto alarm.

Fire detection & alarm System:
 Shipset

B.A. recharging Compressor:
 1 x electric driven 200L/min @ 200 bar (meet FiFi-1 requirement)

Firemain:
 1

Fire hydrants:
 12

Fireman outfit:
 4 complete sets.

Portable Fire Extinguishers:
 Shipset.

Fire Blanket:
 2

Fire Axe:
 1

Paint Locker:
 Shipset

Life Saving Equipment

6 x 25 men life rafts.
6 sets Work vest.
1 set Oxygen resuscitator.
1 x 25 men First aid kid.
1 x 6 men Life boat c/w davit (SOLAS diesel).
50 sets Immersion suits.
7 sets EEBD.
4 sets Air breathing apparatus.

Navigation Equipment

1 set Magnetic compass.
1 set Echo sounder.
1 set X-band Radar 96NM.
1 set S-band Radar 96NM.
1 set Inmarsat-C.
1 set Autopilot.
1 set GPS navigator.
1 set EPIRB.
1 set Navtex receiver(GMDSS).
3 sets Portable VHF (GMDSS).
2 sets SART(GMDSS).
3 sets Gyro compass.
1 set Weather facsimile receiver.
1 set AIS.
1 set Doppler speed log.
