1500m3/h cutter suction dredger

Posted Nov 05, 2010 | Hits: 3335 | Stock No: #0753
Share   Add to favorites   Remove Favorite   Print   Report
City:   Shanghai
Model:   1500m3/h cutter suction dredger


Featured

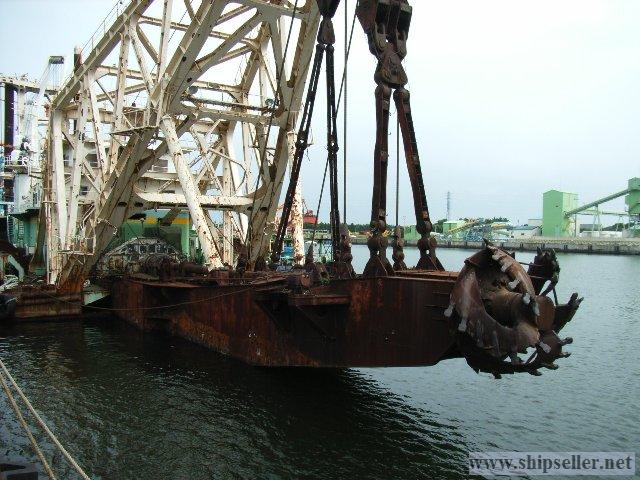

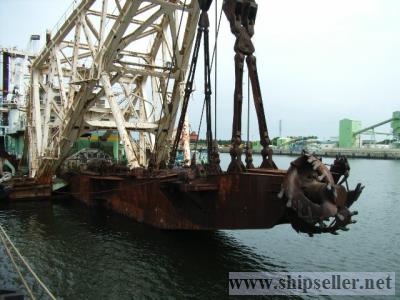

Ship type: cutter suction dredger


Built time: 1979, rebuilt in 2007.05


Built place: Japan


Class: ZC


Flag: China


LOA: 107m


LBP: 67.0m


Breadth: 18m


Depth: 4.5m


Draft: 3.4m


Light displacement: 12000m3/h


Dredging capacity(dry earth): 1500m3/h


Max dredging depth: 27m


Mini dredging depth: 7m


Transfer capacity: 6km


Diameter of transfer pipe: 750mm(in and out)


Whole equipment: 9700ps


Pump M/E: 7200ps


Pump A/E: 610ps


Cutter head: 1500ps


Oil consumption: 13t/day


Actual dredging capacity: 3000m3/day
